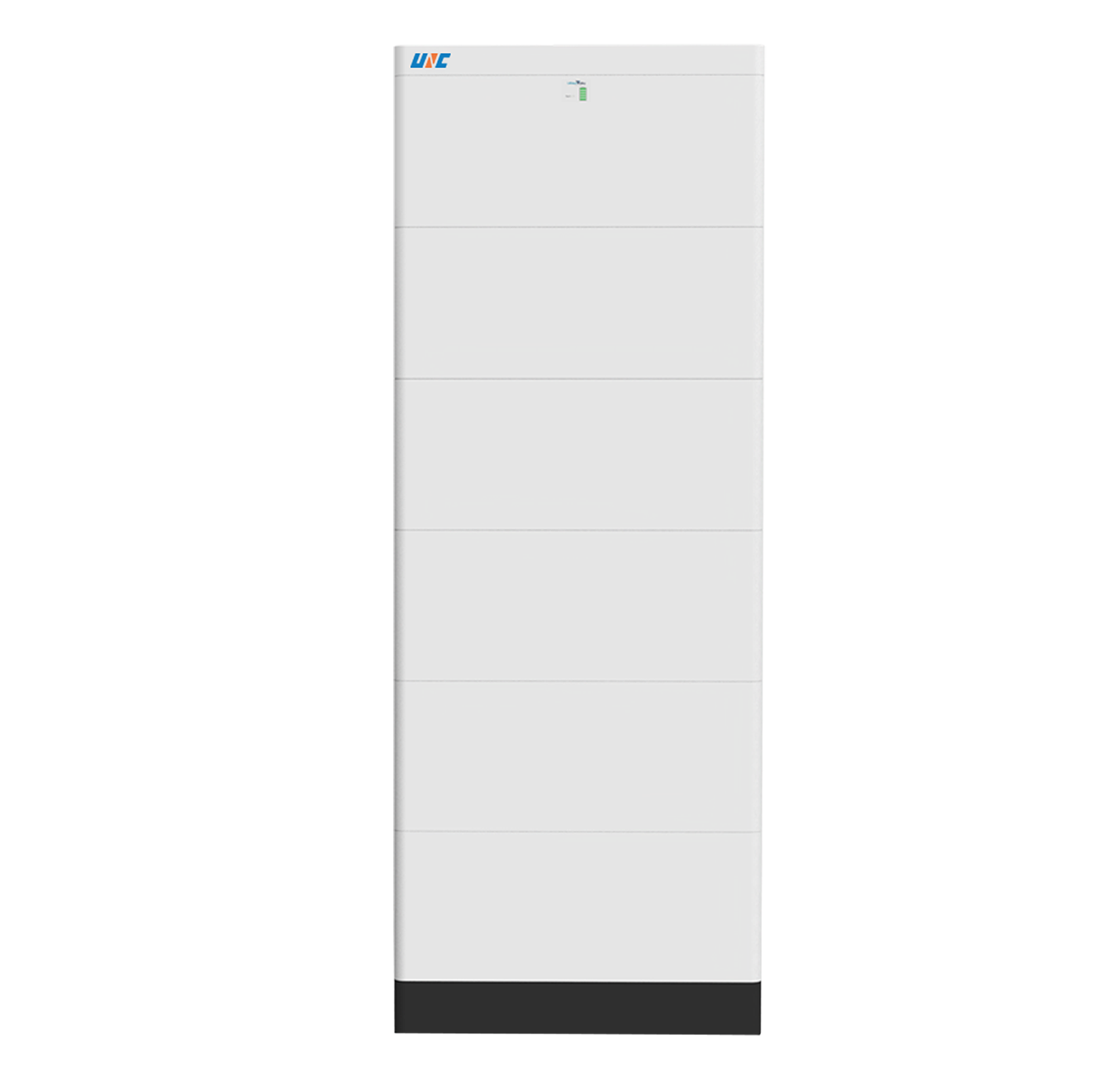

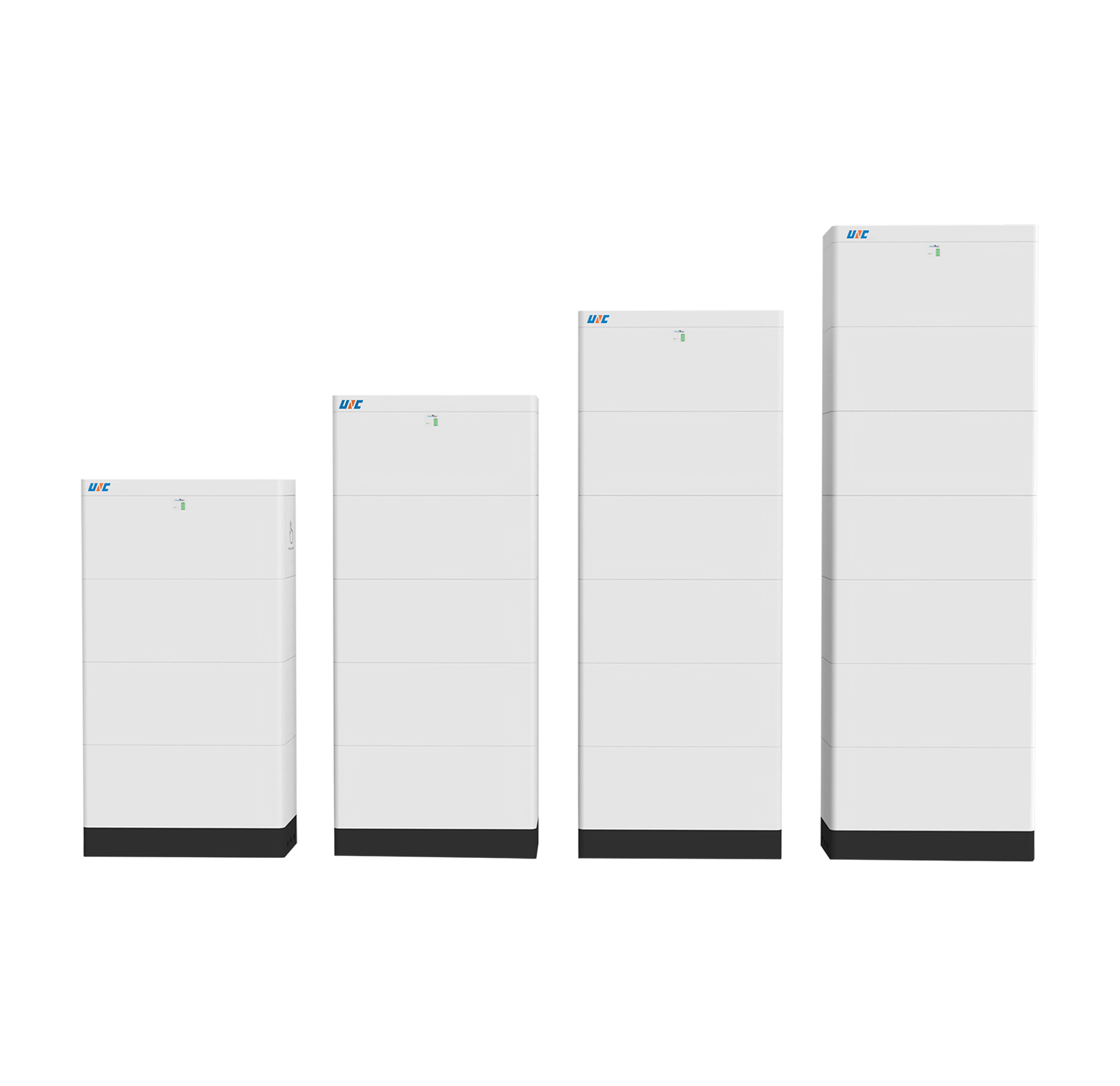

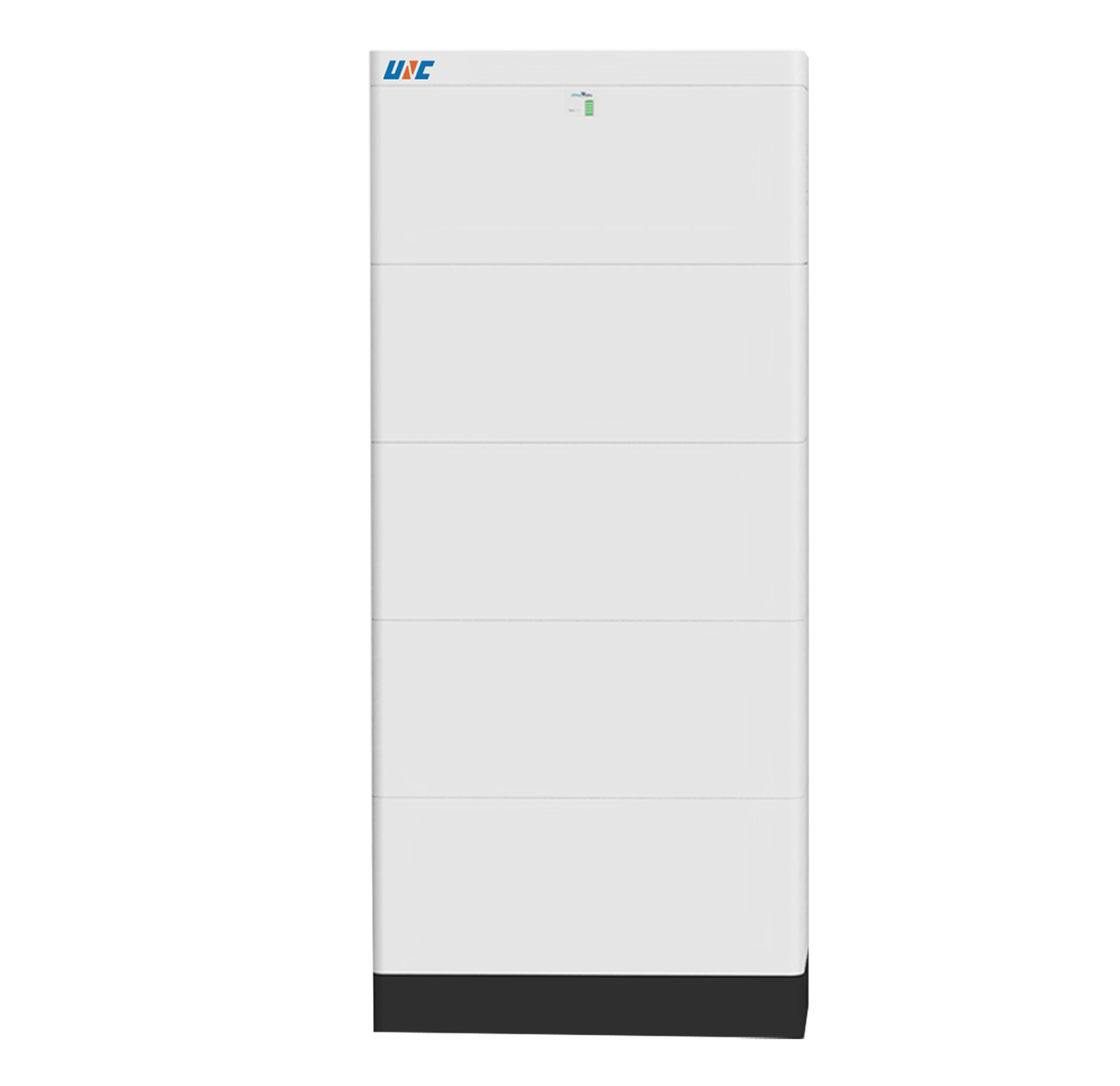

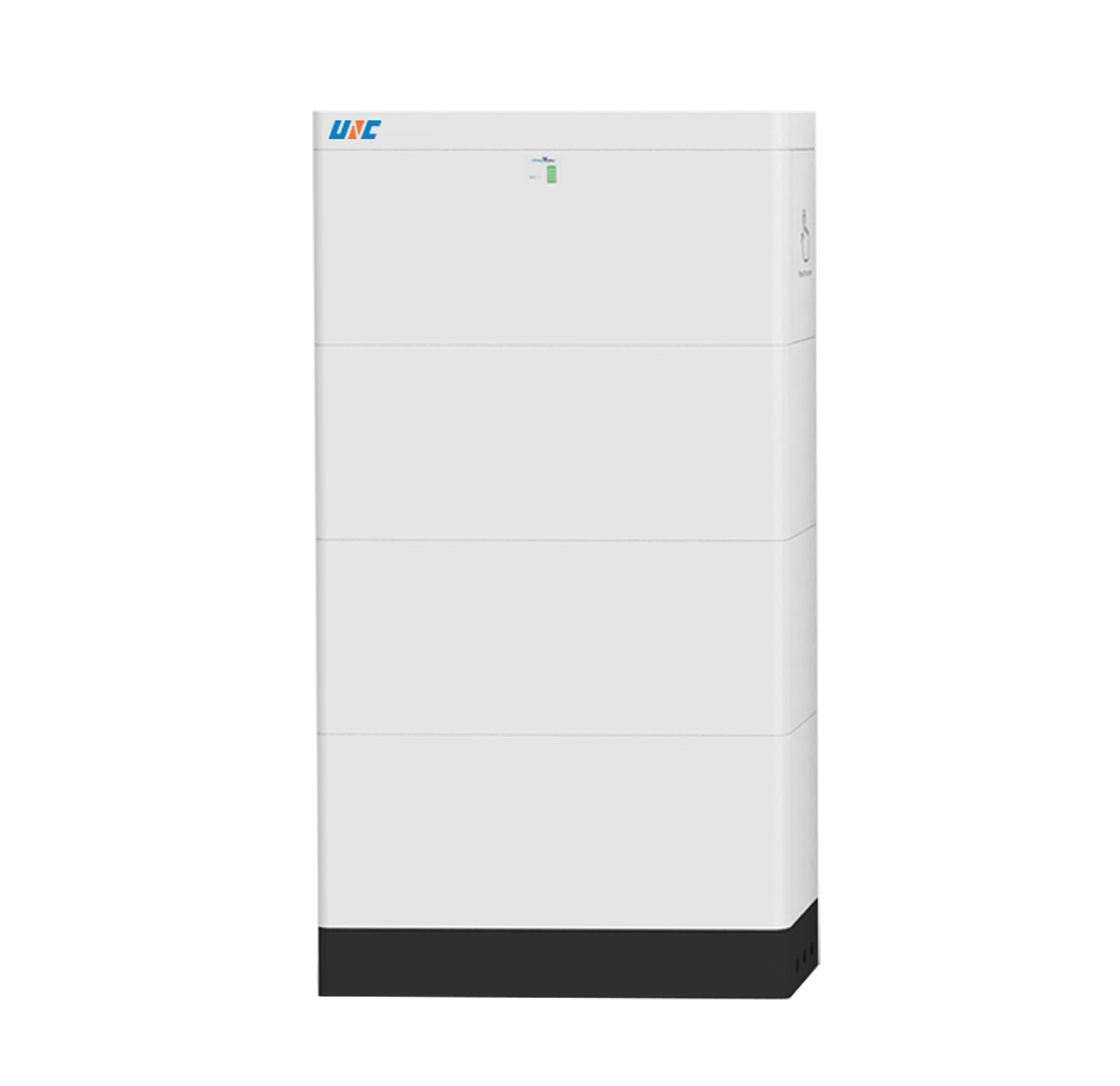

Stacking High-Voltage Batteries

Household Energy Storage Battery Pack
Parameter
Manual

Position：

FrontPage>Product Center>Household Energy Storage>Battery Pack

Product Advantages

Diverse working modes

Diverse working modes that can be flexibly adjusted according to instructions

Screen

Screen direct selection inverter communication

High security level

IP65 high protection level

Flexible capacity configuration

Flexible capacity configuration, can be proportioned according to demand

Multiple parallel machines

5 batteries per unit, with a maximum of 4 parallel units

Modular design

Modular design, easy installation, convenient transportation

Technical Specifications

ModelBAT-10K-HV-SBAT-15K-HV-SBAT-20K-HV-SBAT-25K-HV-S

Energy

10.24kWh
15.36kWh20.48kWh25.6kWh

Operating

Voltage Range

179.2~233.6V268.8~350.4V358.4~467.2V448~584V
Dimension 575*275*986mm
575*275*1276mm575*275*1566mm575*275*1566mm
Dimension 94.5KG
129.5KG164.5KG199.5KG
Recommend charge curren 25A
Max continue charge current 50A
Max continue discharge current 50A
Charging temperature0~45℃
Discharge temperature-20~55℃
DisplayThe information of Battery, such as SOC, battery voltage and so on
EnvironmentIndoor or Outdoor Eaves
Relative humidity5%~95%
Maximum parallel support4 clusters(1 to 5 units per cluster)
CoolingNatural convection
Cell technologyLithium-iron phosphate (LiFePO4)
AuthenticationIP65
Life cycle6000次@80%DOD
CommunicationCAN/Support RS485
CertificatesIEC/EN62619,IEC6100,UN38.3,MSDS
Single battery parameters



Model102.4V 50Ah 5.12kWh
Dimension High Voltage Box:575*275*258mm Battery Box:575*275*290mm Base：575*275*148mm
Weight High Voltage Box:16KG Battery Box:35KG Base：8.5KG
