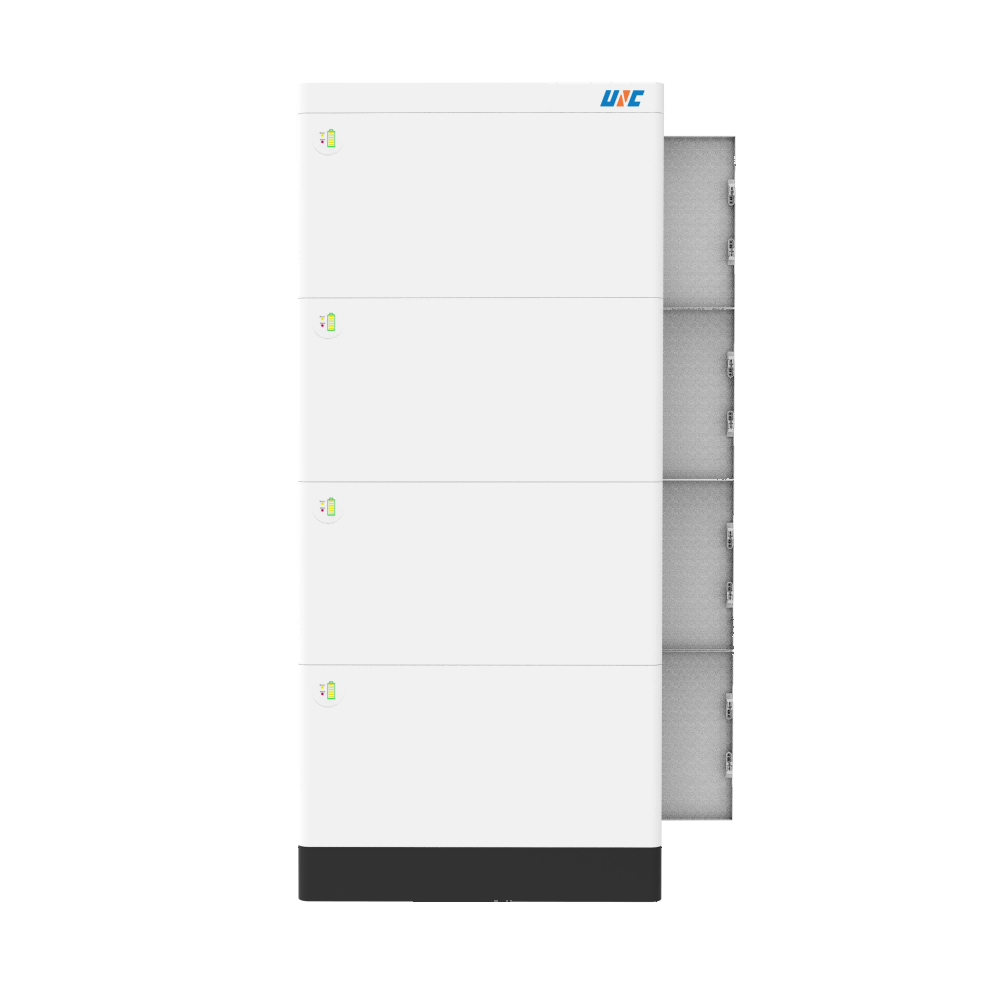

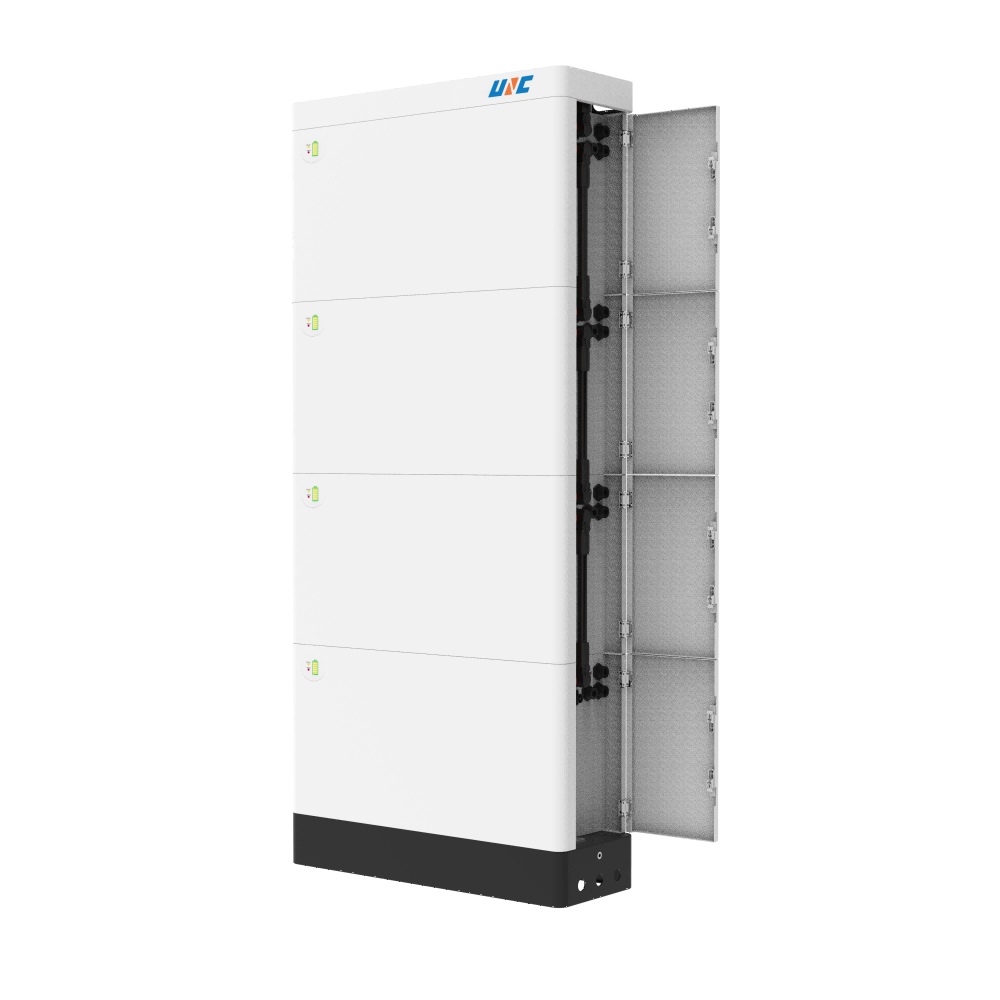

China Battery Pack(Floor Installation)-China UNC Technology

Product Advantages

Diverse modes

Optimize self-service consumption for home and commercial use

Modular design

Modular design simplifies transportation and installation

Lithium Iron Phosphate

Maximum safety, cycle life, and power

Rapid expansion

Up to 6 additional batteries can be added

Featured

Suitable for high-power emergency backup and off grid functions

Technical Specifications

Model	BAT-5K-LV-S
Single Module Parameters	51.2V 100Ah 5.12kWh
Rated Voltage Range	43.2-56.16V
Energy	5120kWh
Peak Discharge Current	150A 600ms
Led Display	Display battery status information such as SOC
Suggested charging/discharging current	50A/50A
Maximum continuous charge/discharge current	100A/100A
Charge Temperature	0~55℃
Discharge temperature	-20~60℃
Work Environment	Indoor
Installation Method	Stacking
IP Degree	IP65
Cooling Method	Natural Convection
Cell	LiFePO4
Number of cycles	6000次80%DOD
Single Module Weight	48KG
Single Module Size(DWH)	600210300mm
Maximum Stackable Number	6th Floor
Maximum Stackable Energy	30.72kWh
Communication Method	RS485/CAN
Authentication	CB,IEC62619,UL1973,UL9540A,UKCA,CE-EMC,CE-GPSD,EN61619;UN38.3,MSDS
